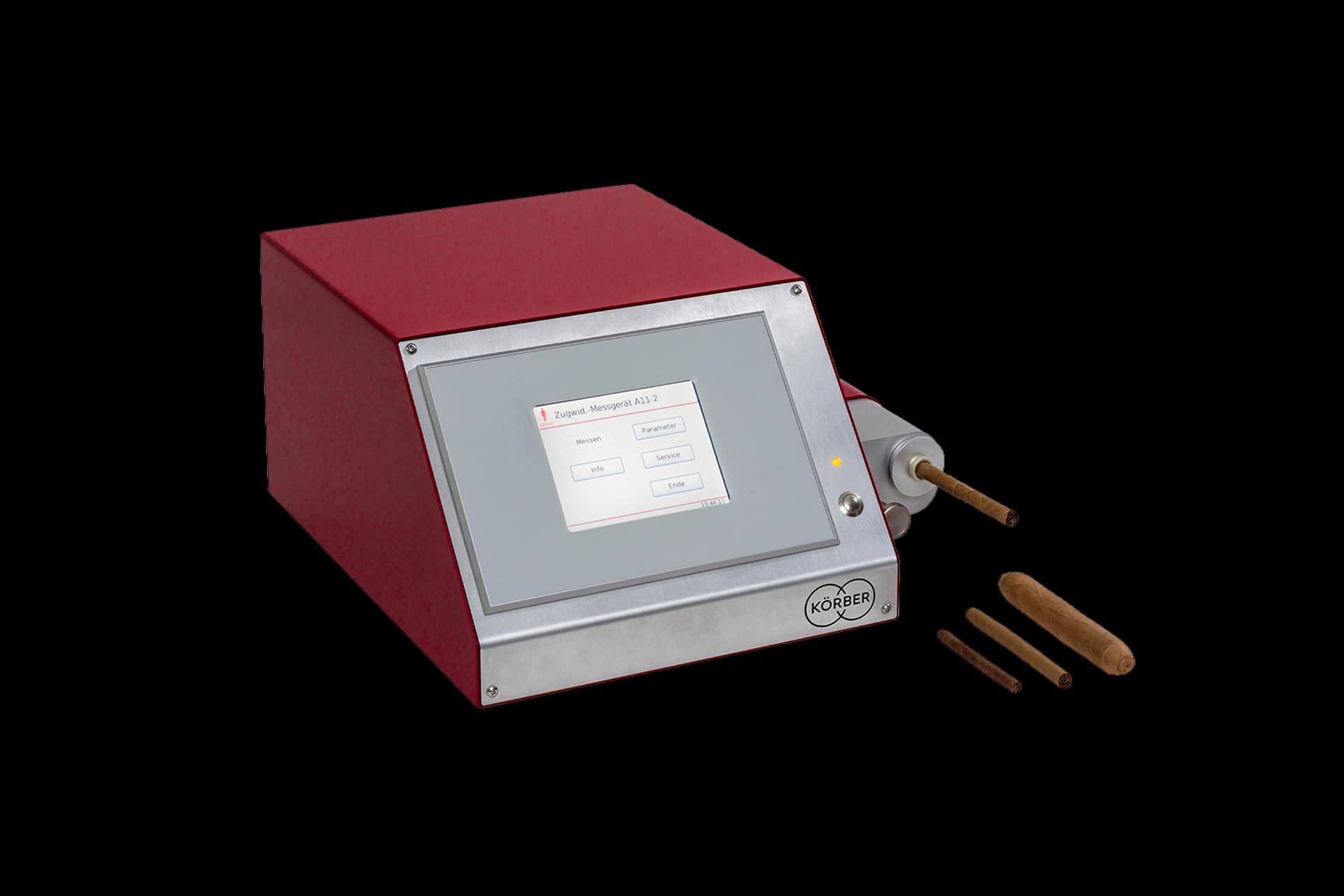

A11-2Z Cigar Pressure Drop Tester

Precise cigar quality control

Ensure consistent quality with a touchscreen interface and network connectivity. The A11-2Z tests diameters from 7 to 23 mm with flexible insertion depths.

In numbers

Diameter range

7–23 mm

Accommodate a broad spectrum of product sizes with a measurement head designed specifically for cigars.

Max depth

200 mm

Extend testing capabilities beyond standard lengths with optional holders available for deeper insertion.

Pressure range

20 kPa

Rely on precise dual-range measurements up to 20 kPa (2,000 mmWG) for comprehensive quality assurance.

Specifications

Technical data

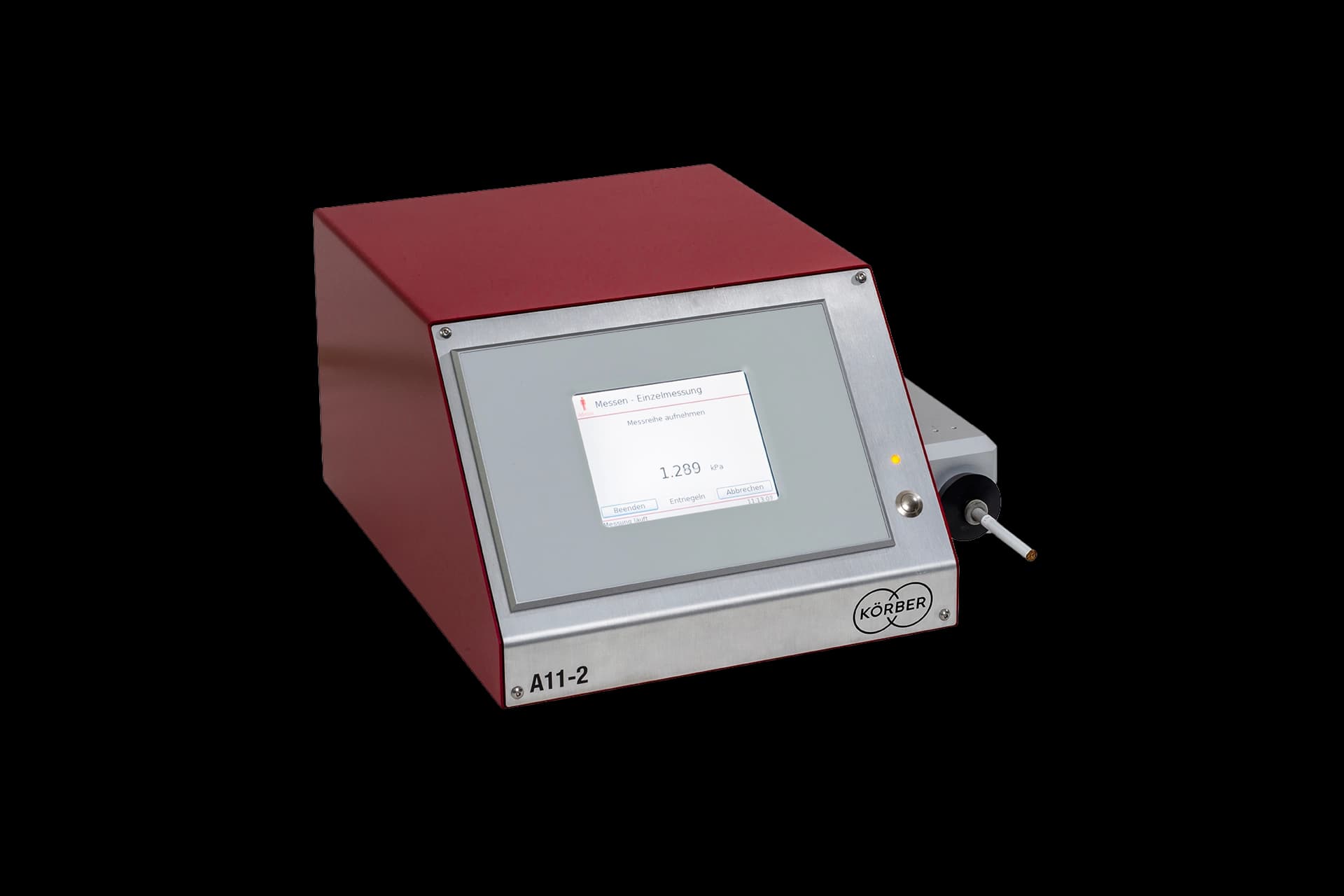

Key specifications for the A11-2 and A11-2Z pressure drop testers, including dimensions, power requirements, and measurement ranges.

Specification	Value
Dimensions (W x H x D)	355 x 450 x 220 mm
Working space needed (W x D)	480 x 750 mm
Weight	approx. 12 kg
Power supply	100 - 240 V, 50 / 60 Hz
Power consumption	max. 50 VA
Compressed air supply	4.5 - 6 bar
Measuring range	Range 1: 0 to 2 kPa (0 mmWG to 200 mmWG) Range 2: 2 kPA to 20 kPa (200 mmWG to 2.000 mmWG)
Resolution	Range 1: 0.001 kPa (0.1 mmWG) Range 2: 0.01 kPa (1 mmWG)
Measuring uncertainty*	Range 1: ±0.02 kPa (± 0.2 mmWG) Range 2: ±0.2 kPa (±2 mmWG)
Cigarette & filter specimen (diameter) – with measuring head standard set and latex sleeve 200 x 7 mm – with measuring head slim set and latex sleeve 200 x 5 mm – with measuring head super slim and latex sleeve 180 x 4 mm	approx. 7.5 to 9.0 mm approx. 5.5 to 7.5 mm approx. 4.1 to 6.0 mm
Insertion depth	9 - 130 mm with standard setting of support tube, insertion depth up to 150 mm adjustable
Cigar specimen (diameter)	Depending on the used cigar holder and latex sleeve up to 23 mm
Insertion depth	9 to 35 mm (for standard cigar holders of 40 mm length)

*measurement uncertainty for pressure drops higher than 13 kPa (1,300 mmWG) could not be checked with transfer standards.

Specifications are subject to change without prior notice. Alterations of design are reserved.
