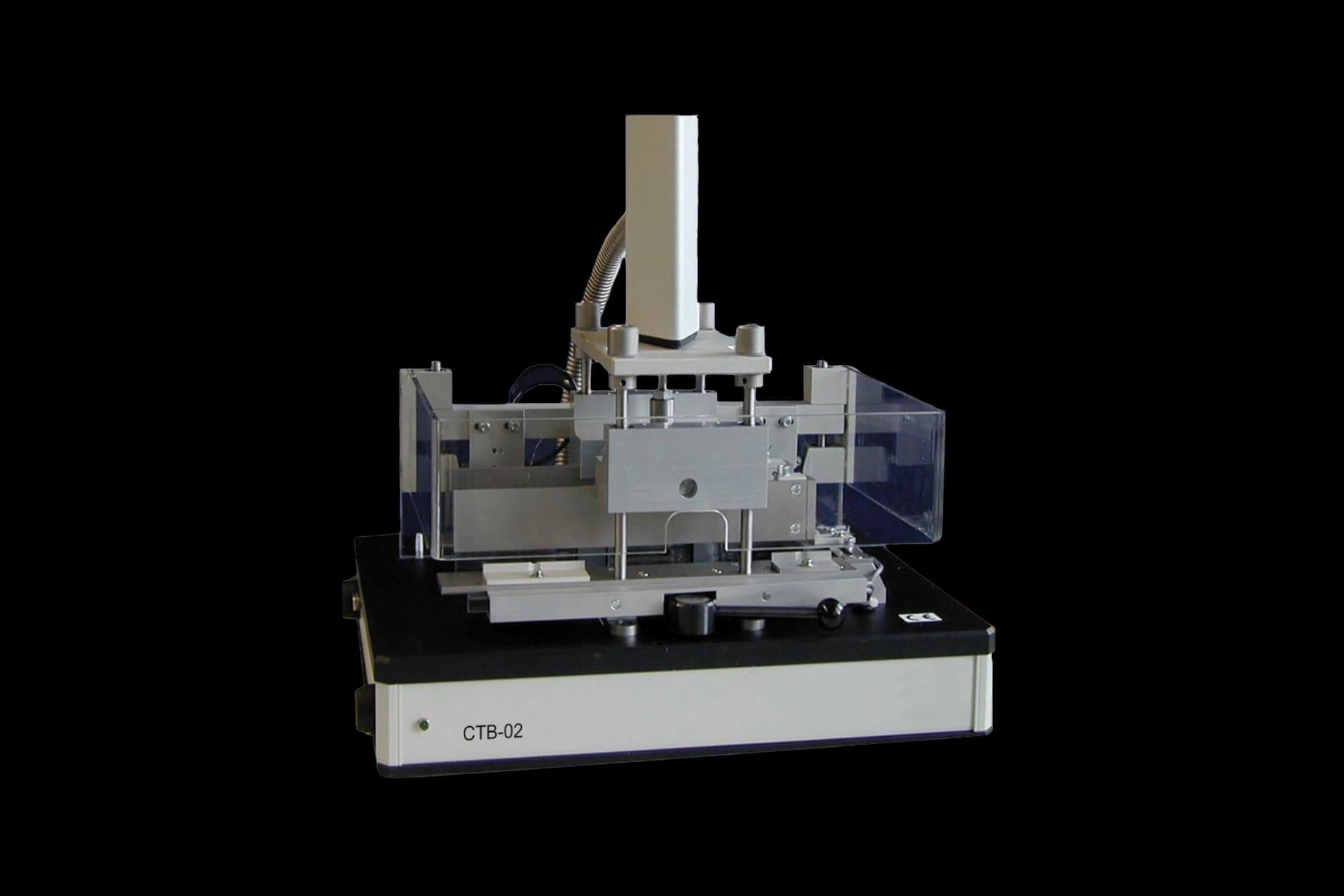

CTB-02 Crease Tester for Packaging

Ensure seamless packaging quality

The CTB-02 stops packs from springing open. Test the fold's resistance to ensure glued seals hold fast, preventing quality issues and production stops.

In numbers

Fast testing cycle

10 sec

The adjustable measuring cycle allows for rapid data collection to keep pace with production needs.

High precision

1 mN

Achieve granular detail in your quality control with a force sensor resolution of 1 mN.

Flexible sizing

120 mm

The CTB-02 accommodates blank widths from 64 mm up to 120 mm to support various packaging designs.

Reliable accuracy

5 mN

Redesigned force sensors deliver an accuracy of 5 mN for consistent, dependable measurement.

Specifications

Technical data

Technical specifications for the CTB-02 Crease Tester.

Specification	Value
Measuring cycle	10 seconds (can be adjusted)
Force sensor resolution	1 mN
Force sensor accuracy	±5 mN
Max. force	2.5 N
Measurement distance from crease	10 mm
Time resolution	0.7 s
Power consumption	< 2.5 W (powered by USB)
Operating voltage	5 V (powered by USB)
Compressed air	5 bar oil free and dry, approx. 100 l/min
Operation temperature range	15°C to 30°C
Blank width	64 to 120 mm
For pack widths	36 to 72 mm
Dimensions (L x W x H)	400 x 475 x 460 mm
Weight	17 kg

For the operation of the CTB-02 an external computer is required. No computer is included in the scope of delivery.
Specifications are subject to change without prior notice. Alterations of design are reserved.
