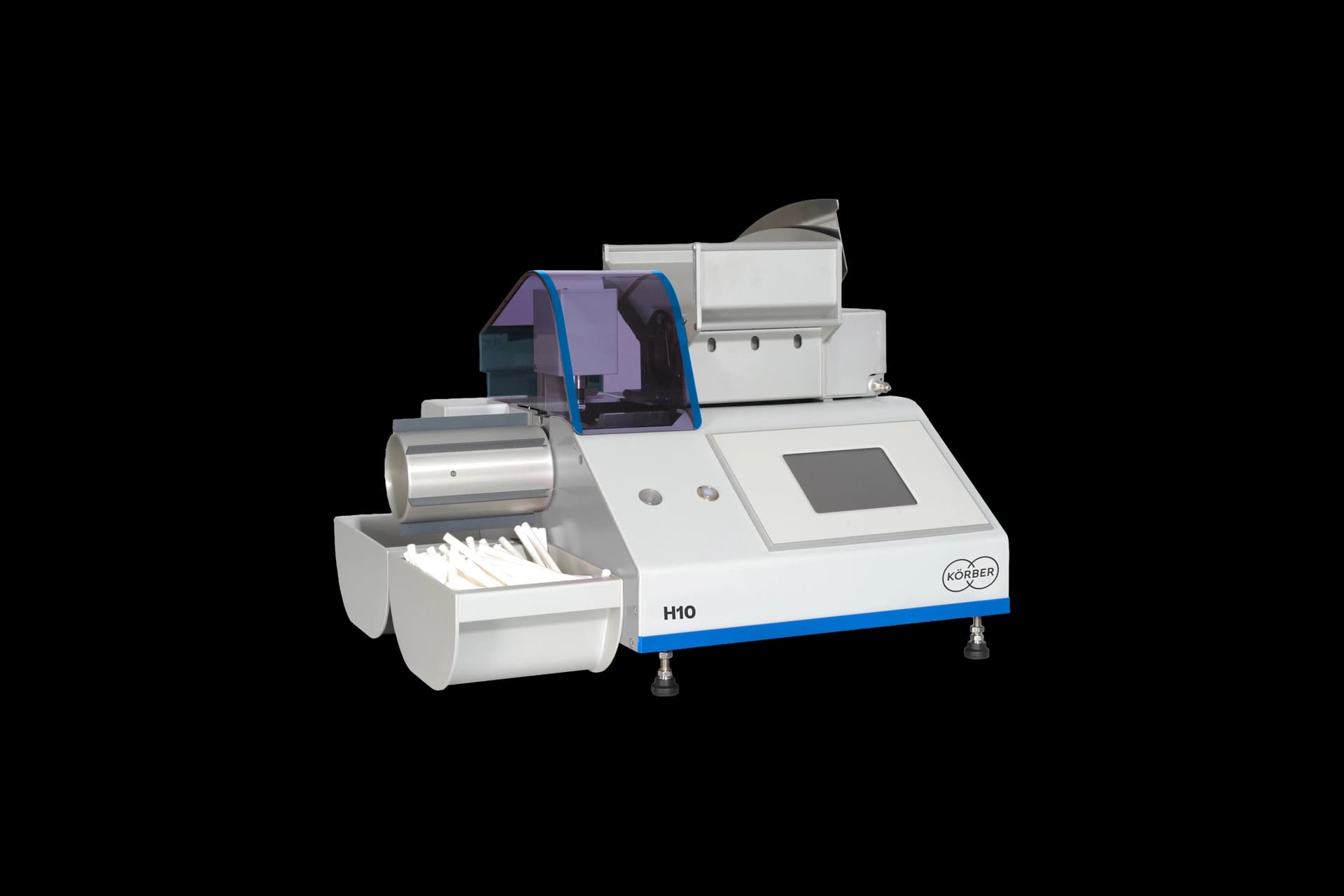

H10 Hardness Tester

Precise, automated testing

Equipped with a 250-sample hopper, the H10 automatically positions items for testing. Control everything via touchscreen and easily transfer data using USB or Ethernet.

In numbers

Hopper capacity

max. 250

The instrument features a hopper that holds approximately 250 samples for continuous testing.

Sample length

150 mm

You can test products ranging from 58 mm up to 150 mm in length to suit different formats.

Speed

~20 sec

Get fast results with a measurement duration of approximately 20 seconds per sample.

Lowering speed

1,000 mm/s

The lowering speed is adjustable up to 1,000 mm/s to meet your specific testing requirements.

Specifications

Technical data

Technical data for the H10 hardness tester, including dimensions, power requirements, and measurement capabilities.

Specification	Value
Total dimensions (H x W x D)	approx. 600 x 420 x 450 mm
Total weight	approx. 25 kg incl. sorting boxes
Power supply	100-240V, 50/60 Hz
Total power consumption	50 VA
Sample length	58 mm up to 150 mm
Sample diameter	4.5 mm to 10 mm
Hopper capacity	max. 250
Force transducer	max. 500 g
Measuring accuracy	height: 0.01 mm force: 0.1 g
Measurement duration	approx. 20 s (at a lowering speed of 0.6 mm/s and a loading time of 5 s)
Measurement position	0-150 mm (variable number of positions)
Loading weight	50-350 g
Lowering speed	0.153-1,000 mm/s
Contact weight	2-10 g
Contact time	0-2 s
Loading time	2-60 s
Interfaces	4 x USB (e.g. for printer) 1 x Ethernet
User interface	Touchscreen with LCD

Specifications are subject to change without prior notice. Alterations of design are reserved.
