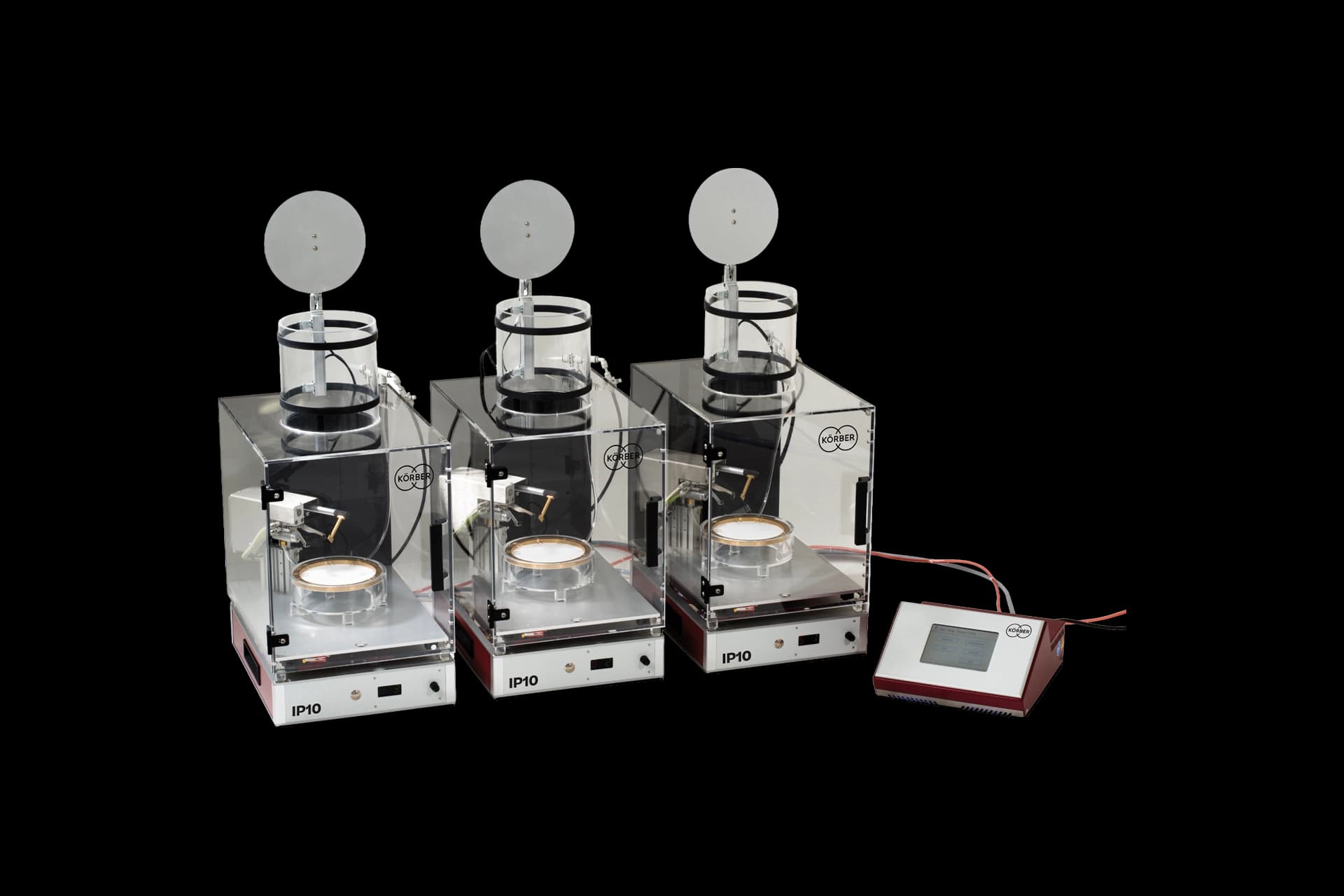

IP10 LIP & Burn-Rate Tester

Consistent compliance testing

Automated lighting, measuring, and recording ensures fully repeatable results while reducing operator workload and allowing for simultaneous testing.

The Ignition Propensity Tester IP10 is a modular semi-automated system for testing ignition propensity of cigarettes on the basis of ASTM E 2187 and / or ISO 12863.

In numbers

Precision

0.1 mm

High-resolution accuracy for termination point and burn-rate measurements.

Timing

0.1 s

Automated burn-rate measurement timing resolution.

Length

120 mm

Accommodates cigarettes up to 120 mm.

Diameter

9 mm

Maximum compatible cigarette diameter.

Features

Components of the Ignition Propensity Tester (IP10)

Component	Details
Control Panel	Capable of operating up to 10 modules. Used for process visualization, setting operating parameters, and displaying status/fault messages. Operated via touchscreen (or alternatively by keyboard and mouse). Outputs data via USB or network communication for saving and printing. Contains the power supply for adapted modules and the central air supply.
Module Control Unit	Runs the processes of each individual handling system. Contains the pneumatic component and the suction system for lighting cigarettes.
Handling System	Automates most manual and visual tasks required by ISO 12863. Consists of a lifting system, gripper, format-dependent adapter, and a movable infrared heat sensor mounted on a base plate. Can be retrofitted into existing boxes and pulls out easily for cleaning purposes. Powered by pneumatics (except for a stepper-motor controlled by the infrared heat sensor). Features a removable pneumatic ejector pump on top of the module control unit for maintenance-friendly suction.

Component

Details

Control Panel

Capable of operating up to 10 modules.

Used for process visualization, setting operating parameters, and displaying status/fault messages.

Operated via touchscreen (or alternatively by keyboard and mouse).

Outputs data via USB or network communication for saving and printing.

Contains the power supply for adapted modules and the central air supply.

Module Control Unit

Runs the processes of each individual handling system.

Contains the pneumatic component and the suction system for lighting cigarettes.

Handling System

Automates most manual and visual tasks required by ISO 12863.

Consists of a lifting system, gripper, format-dependent adapter, and a movable infrared heat sensor mounted on a base plate.

Can be retrofitted into existing boxes and pulls out easily for cleaning purposes.

Features a removable pneumatic ejector pump on top of the module control unit for maintenance-friendly suction.

Why choose Körber?

The Körber advantage

Cutting-edge technology

We don’t just follow industry trends: we shape them. With best-in-class processing technology and smart solutions that combine speed, precision and efficiency.

Wide portfolio

We work with a global network of partners and customers across an ever-expanding range of products, from traditional cigarette manufacturing to risk-reduced tobacco heating products.

Worldwide presence

Whether you need maintenance advice or training tips for your staff, our experts provide production support remotely and on-site.

80 years

We have driven and transformed the tobacco industry for more than 75 years.

Production, sales and service locations worldwide.

2/3rds

Our machinery is used in the production of two-thirds of the world's filter cigarettes.

Certified quality

‎
We bring years of expertise through active work on DIN and ISO committees and involvement with CORESTA on scientific topics related to cigarettes, e-cigarettes and tobacco, enabling us to provide the best advice for your needs.
$Cofrac and Dakks logo$
‎
Our French laboratory is accredited by COFRAC (accreditation no. 2-1919; scope at www.cofrac.fr), and our German laboratory is accredited by DAkkS, Germany’s national accreditation body.
‎
Our ISO 9001 certification not only ensures the quality of our products and services, it also represents an ongoing process in which we critically evaluate ourselves.
