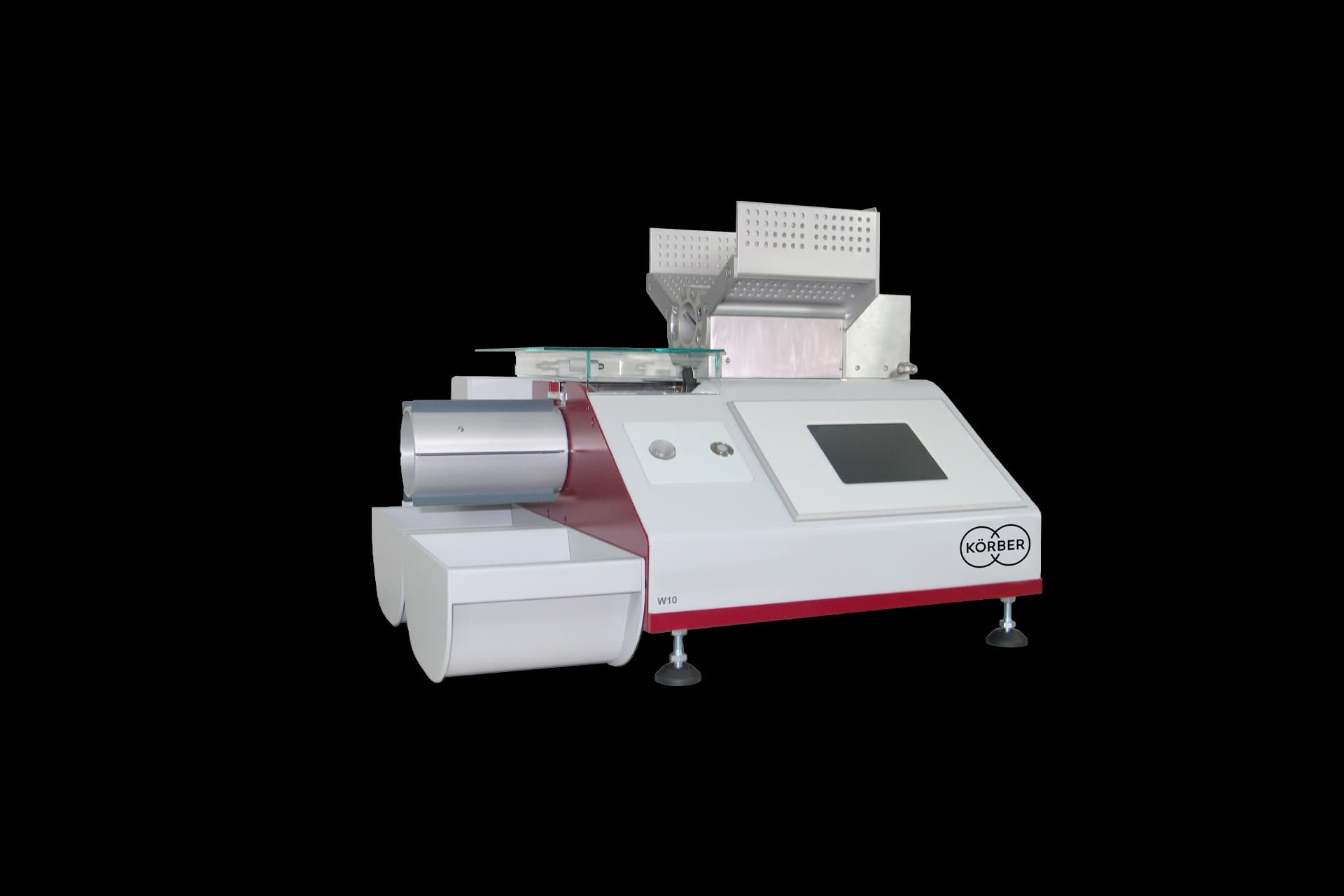

W10 Weight Tester

Automated quality control

Monitor production easily with the Weight Tester W10 — a desk top instrument to measure physical parameters on cigarettes and filter rods.

The W10 feeds, weighs, and sorts samples automatically, giving you fast, accurate data via a simple touchscreen.

This new generation of standalone instruments is designed to accommodate cigarettes, filter rods and machine made cigars with a length between 58 and 150 mm and diameters ranging from 5 to 10 mm. The entire family uses the same basic unit, while only the measuring module differs from instrument type to instrument type.

The machines are controlled via touchscreen PC and offer USB port and Ethernet connection for fast and easy data transmission and handling.

The graphical touch sensitive display, helps the user in the daily operation of the instrument from measurements, calibration, test results and interfacing to external outputs.

In numbers

Precision

0.1 mg

Achieve reliable quality control with high reading precision for every sample measured.

Capacity

250

The integrated hopper holds approximately 250 samples, allowing for continuous operation.

Versatility

150 mm

Test a wide range of product sizes, from standard cigarettes to long cigars up to 150 mm.

Speed

25/min

Keep your production quality checks moving efficiently with speeds up to 25 samples per minute.

Specifications

Technical data

View the technical details for the W10 weight tester below.

Specification	Value
Total dimensions (H x W x D)	approx. 600 x 420 x 450 mm
Total weight	approx. 25 kg incl. sorting box
Power supply	100-240 V, 50/60 Hz
Total power consumption	50 VA
Sample length	58 mm up to 150mm
Sample weight	up to 40g
Sample diameter	4.5mm to 10mm
Reading precision	0.1 mg
Standard deviation	< ± 0.1 mg
Linearity error	< ± 0.2 mg
Measuring uncertainty (scale)	± 0.5 mg
Measuring speed	up to 25 samples per minute
Hopper capacity	max. 250
Interfaces	4 x USB (printer) 1 x Ethernet
User interface	Touchscreen with LCD

_{*Other specifications possible on request. Specifications are subject to change without prior notice. Alterations of design are reserved.}

Why choose Körber?

The Körber advantage

Cutting-edge technology

We don’t just follow industry trends: we shape them. With best-in-class processing technology and smart solutions that combine speed, precision and efficiency.

Wide portfolio

We work with a global network of partners and customers across an ever-expanding range of products, from traditional cigarette manufacturing to risk-reduced tobacco heating products.

Worldwide presence

Whether you need maintenance advice or training tips for your staff, our experts provide production support remotely and on-site.

80 years

We have driven and transformed the tobacco industry for more than 75 years.

Production, sales and service locations worldwide.

2/3rds

Our machinery is used in the production of two-thirds of the world's filter cigarettes.

Certified quality

‎
We bring years of expertise through active work on DIN and ISO committees and involvement with CORESTA on scientific topics related to cigarettes, e-cigarettes and tobacco, enabling us to provide the best advice for your needs.
$Cofrac and Dakks logo$
‎
Our French laboratory is accredited by COFRAC (accreditation no. 2-1919; scope at www.cofrac.fr), and our German laboratory is accredited by DAkkS, Germany’s national accreditation body.
‎
Our ISO 9001 certification not only ensures the quality of our products and services, it also represents an ongoing process in which we critically evaluate ourselves.
