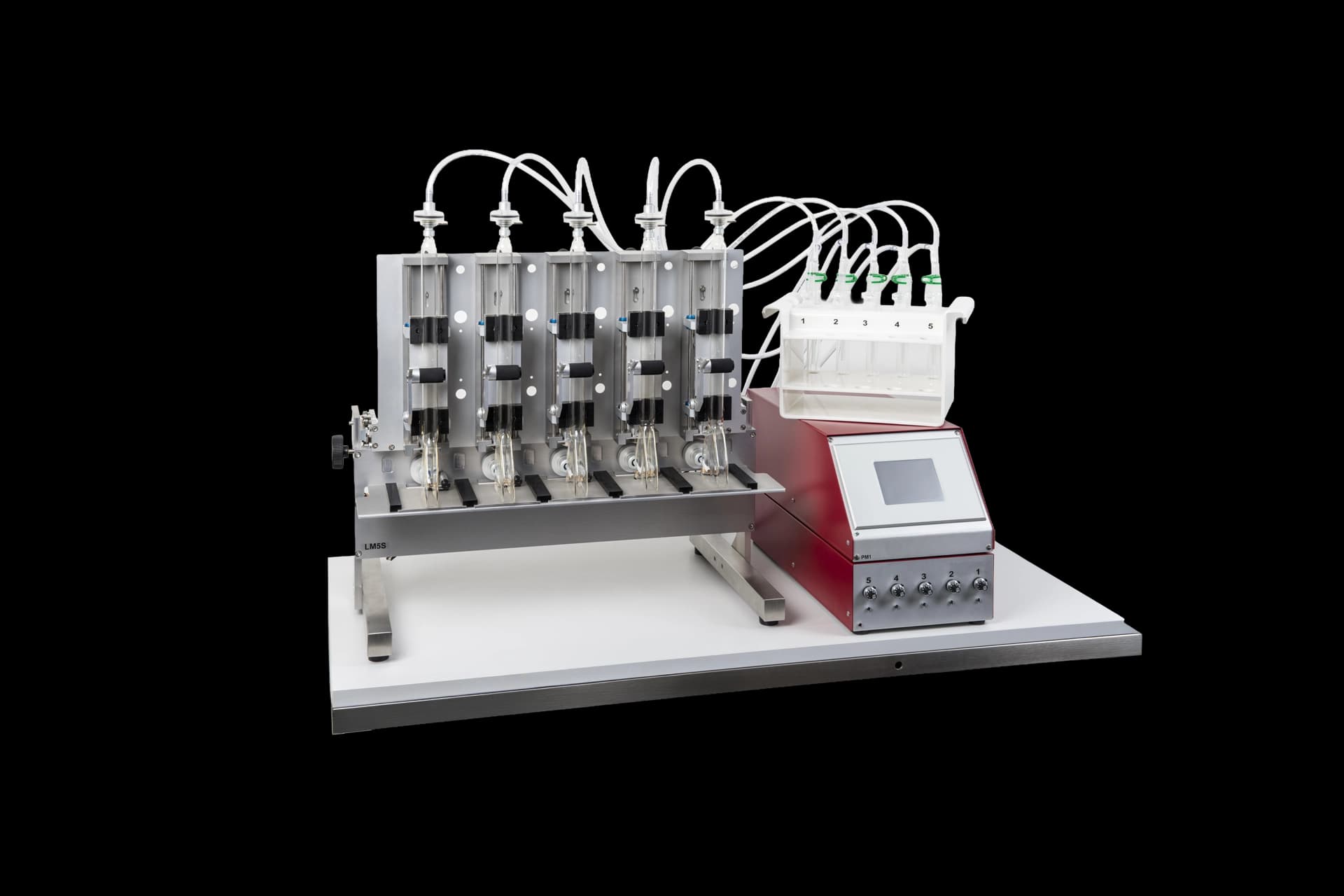

LM5S Sidestream Smoke Machine

Accurate, sequential smoking

Light cigarettes directly in the chimney without altering data. Infrared sensors track the butt length to stop puffing and lift the chimney automatically.

In numbers

Puff volume

5-150 ml

You can adjust the puff volume across a wide range to suit different testing needs.

Sample size

60-120 mm

The machine holds cigarette samples ranging from 60 mm to 120 mm in length.

Frequency

10 puffs

Set the puff frequency anywhere between 0.1 and 10.0 puffs per minute.

Weight

27 kg

The unit is light enough to sit securely on a standard laboratory tabletop.

Specifications

Technical data

Detailed technical data for the LM5S linear smoking machine.

Specification	Value
Field of application:	Table top instrument for side stream smoke collection of cigarettes following ISO 20773 and ISO 20774
Dimensions (W x H x D): – Smoke module – Air flow module – Puffing module PM1 – Impinger set	– 800 x 1000 (680) x 500 mm (ground position chimneys) – 275 x 135 x 800 mm – 275 x 205 x 800 mm – 390 x 400 x 230 mm
Working space needed (W x D)	1100 x 800 mm (excluding gas collection bags)
Weight	approx. 27 kg
Power supply	100 - 240 V, 50/60 Hz
Compressed air supply	2 bar, dry, oil-free
Puff profile	Pre set.: ISO bell shaped, rectangular, triangle User definable
Puff volume	5 - 150 ml
Puff duration	1.0 - 9.9 s
Puff frequency	0.1 - 10.0 puffs/min
Cigarette sample: – Cigarette length – Cigarette diameter	60 - 120 mm 4.5 - 9.0 mm
Butt length termination	20 - 60 mm or fixed puff count

Specifications are subject to change without prior notice. Alterations of design are reserved.
