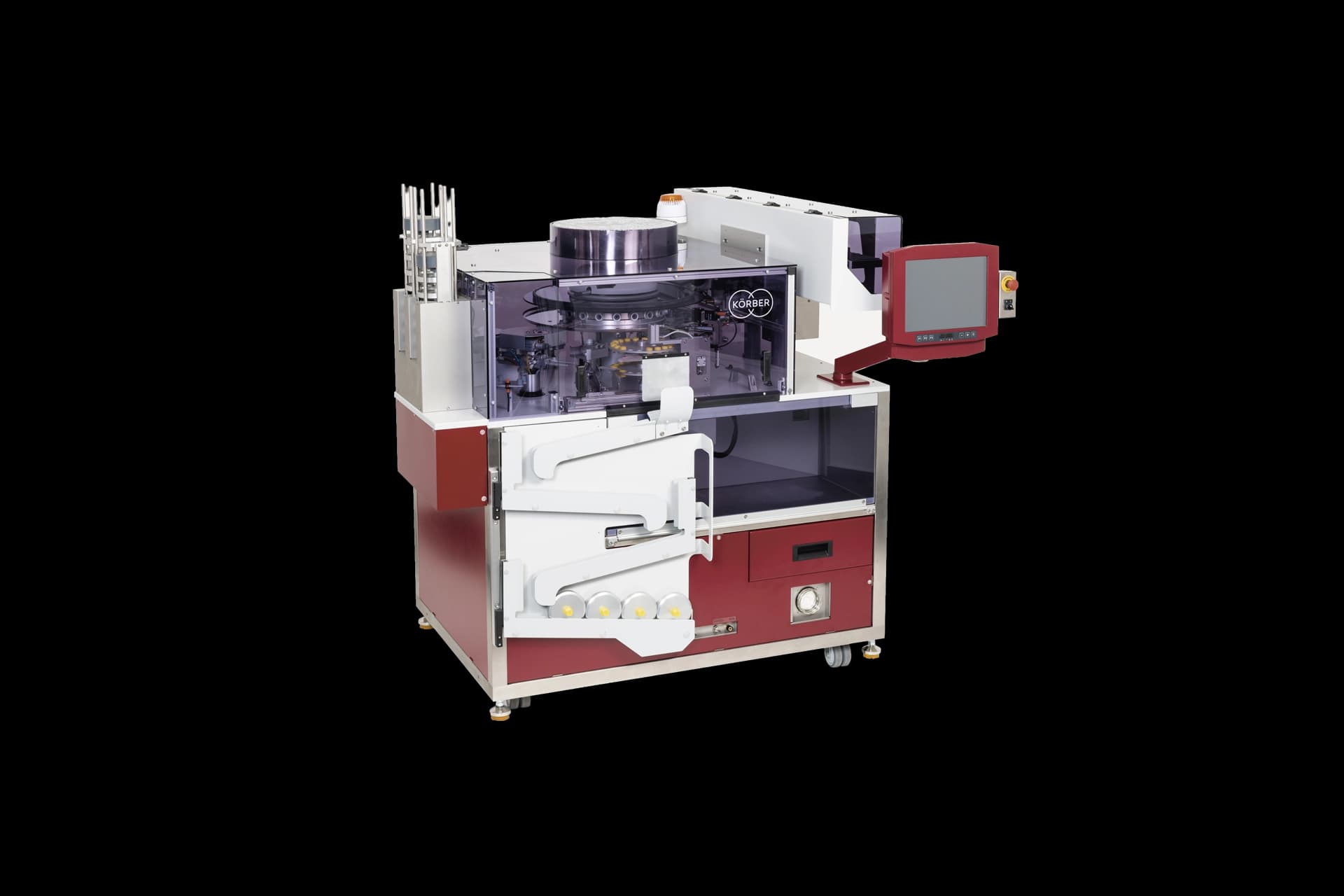

RM400A2 Automatic Rotary Smoking Machine

Efficient, automated routine smoking

Run 10 consecutive smoking cycles without lifting a finger. This machine handles loading and extraction automatically, so you can focus on other tasks.

In numbers

Capacity

400

Up to 400 cigarettes per machine run.

Number of cigarettes/smoke run

20-5

20 at 1 puff/minute,

10 at 2 puffs/minute,

5 at 3 puffs/minute.

Valuable options

FCSA & vent blocking cigarette holder, CO module, NOx analyzer.

Specifications

Technical data

Review the technical details, dimensions, and installation requirements for the RM400A2 below.

Specification	Value
Required floor space with/without mobile exhaust unit	approx. 4 m² / 3 m²
Footprint without exhaust unit (H \times W \times D)	approx. 1390 \times 1390 \times 780 mm
Footprint with exhaust unit (H \times W \times D)	approx. 1870 \times 1390 \times 780 mm
Total weight smoking machine	approx. 210 kg
Total weight exhaust unit	approx. 75 kg
Power supply	100 - 230 VAC, 50/60 Hz
Power consumption	400 VA max.
Compressed air supply	6 - 8 bar
Compressed air consumption	50 l/minute maximum
Exhaust port	PVC pipe DIN 19560, DN 75
Exhaust air	approx. 40 m³/h
Cigarette length	65 - 120 mm
Cigarette diameter	4.5 - 9 mm
Lighter power	0 - 120 W
Puff volume	5 - 150 ml maximum
Puff frequency	1 - 4 puffs/minute*
Puff duration	1.0 - 10.0 s*
Puff profile	1 \times ISO bell-shape; 9 \times user definable
Number of cigarettes/smoke run	20 at 1 puff/minute, 10 at 2 puffs/minute, 5 at 3 puffs/minute
Capacity	ca. 400 cigarettes per machine run
Communication	Ethernet, USB

* Puff frequency and puff duration are interdependent and dependent on the number of cigarettes

Why choose Körber?

The Körber advantage

Cutting-edge technology

We don’t just follow industry trends: we shape them. With best-in-class processing technology and smart solutions that combine speed, precision and efficiency.

Wide portfolio

We work with a global network of partners and customers across an ever-expanding range of products, from traditional cigarette manufacturing to risk-reduced tobacco heating products.

Worldwide presence

Whether you need maintenance advice or training tips for your staff, our experts provide production support remotely and on-site.

80 years

We have driven and transformed the tobacco industry for more than 75 years.

Production, sales and service locations worldwide.

2/3rds

Our machinery is used in the production of two-thirds of the world's filter cigarettes.

Certified quality

‎
We bring years of expertise through active work on DIN and ISO committees and involvement with CORESTA on scientific topics related to cigarettes, e-cigarettes and tobacco, enabling us to provide the best advice for your needs.
$Cofrac and Dakks logo$
‎
Our French laboratory is accredited by COFRAC (accreditation no. 2-1919; scope at www.cofrac.fr), and our German laboratory is accredited by DAkkS, Germany’s national accreditation body.
‎
Our ISO 9001 certification not only ensures the quality of our products and services, it also represents an ongoing process in which we critically evaluate ourselves.

Downloads

Documentation

Brochure: RM400A2

‎

Download(2.1MB)
