EcoPal Tissue Bundles & Displays

Compact tissue pack handling with EcoPal Tissue

EcoPal Tissue is a compact solution for handling small and large packs and bundles of tissue products, including toilet paper, kitchen towels, napkins, and more.

In numbers

High-speed performance

Up to 100 p/min

Maintain continuous end-of-line flow with high-speed infeed and layer formation, processing up to 100 products per minute without bottlenecks at peak production.

Controlled product handling

< 0.1% damage

Gentle layer handling and controlled compression ensure stable, retailer-ready pallets, achieving zero product damage during palletizing of sensitive tissue products.

Flexible load handling

Up to 150 kg

Handle a wide range of tissue formats, from small packs to heavy bundles, with one system, supporting layer weights of up to 150 kg without compromising stability.

Compact footprint

7 × 12 m

Reduce space requirements at the end of line with a highly compact layout, fitting a full system into as little as 7 × 12 meters through direct bundler integration.

System availability

>98%

Built for reliable continuous operation, the system achieves over 98% availability, ensuring stable performance and minimal unplanned downtime.

Simple operator control

PLC-based

Simplify daily operations with standard PLC control, enabling easy handling of the system without robotics expertise and reducing training complexity.

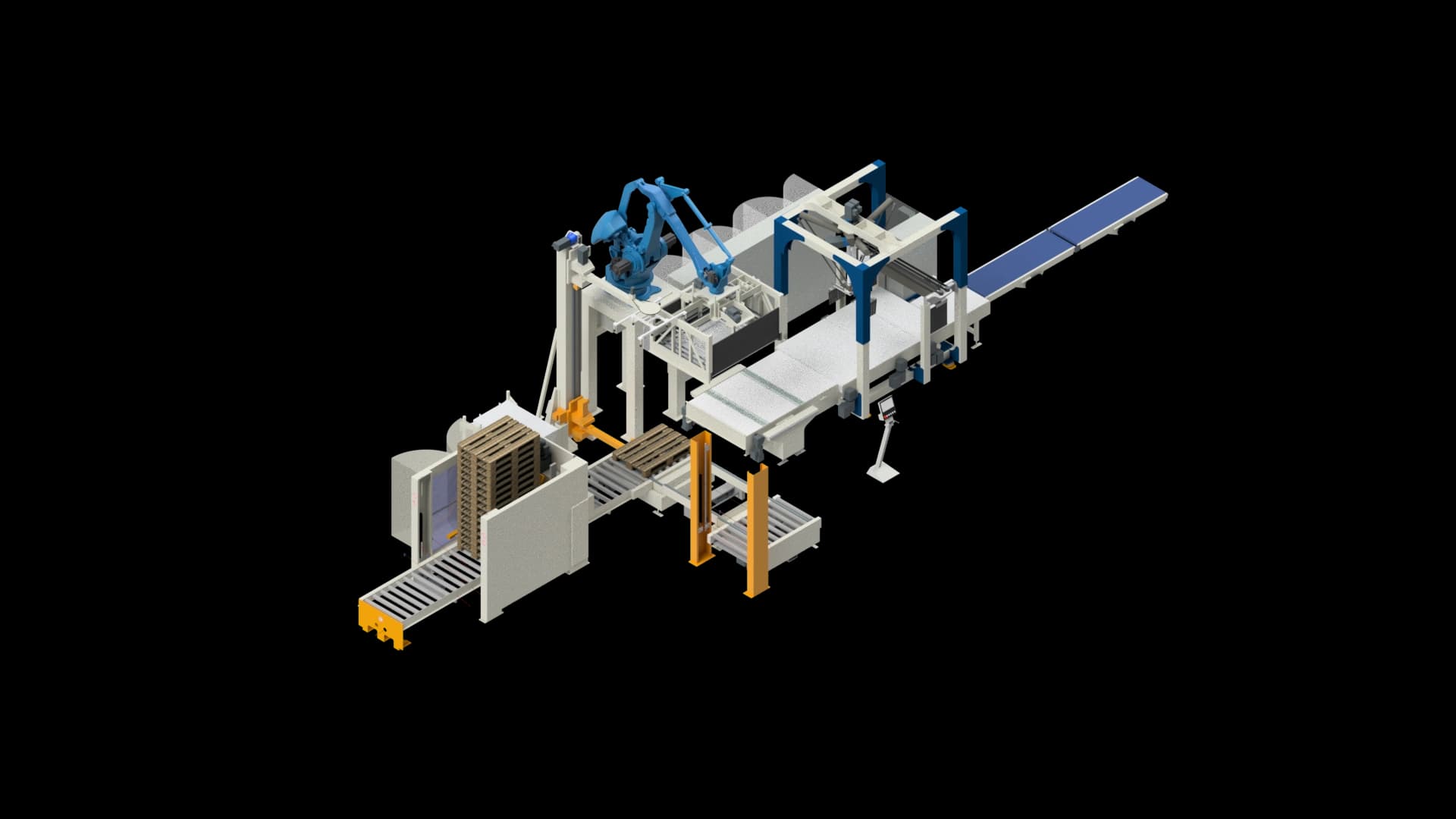

Boost your line performance with a coordinated concept that ensures extreme accuracy and high-quality palletizing. The EcoPal Tissue connects the ZF76 infeed station directly to your bundler, where a delta picker groups packs or bundles to eliminate the need for costly line diverters.

This setup features the AR500 articulated robot and our patented TheWave system—an innovative combination of a module belt conveyor and split shutter apron gripper—to provide gentle, flexible handling for every layer. From kitchen towels to napkins, the universal gripper handles variety without mechanical size changes, maximizing your uptime within a footprint as small as 7 by 12 meters.

Compare EcoPal solutions

Explore the technical specifications to find the right balance of speed, footprint, and handling for your production requirements.

Category	EcoPal	EcoPal Tissue
Applications	FMCG and bakery sectors	Tissue industry
Primary benefit	Entry-level automation	Space-saving tissue handling
Best for	Cartons, trays, foil-wrapped products and stacking trays	Toilet paper, towels, sanitary bundles and foil wrapped products
Max speed	4 layers/min	5-6 layers/min
Load capacity	60 kg/layer	150 kg/layer
Infeed station	ZF75 grouping station	ZF76 with delta picker
Gripper system	GR75 double fork-layer	GR79 servo-electric layer
Layer handling	Split sliding apron	Patented TheWave system
Integrated robot	AR320 articulated robot	AR500 articulated robot
Control system	Siemens/Rockwell PLC	Siemens/Rockwell PLC

Patented innovation

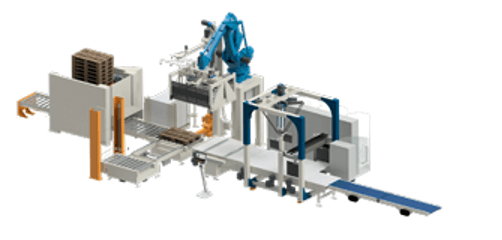

Protect product quality with TheWave handling

Ensure the integrity of your tissue products with TheWave, our patented layer handling system. By combining a module belt conveyor with a specialized split shutter apron gripper, this solution provides exceptionally gentle handling for complete layers.

This innovative approach allows you to save up to 40–50% in footprint, compared to conventional systems, while maintaining the flexibility to handle diverse pack sizes and configurations without damage.
