Dividella NeoTRAY

Combine high-speed sideloading performance with the flexibility of toploading in a fully modular platform, delivering up to 500 packs per minute.

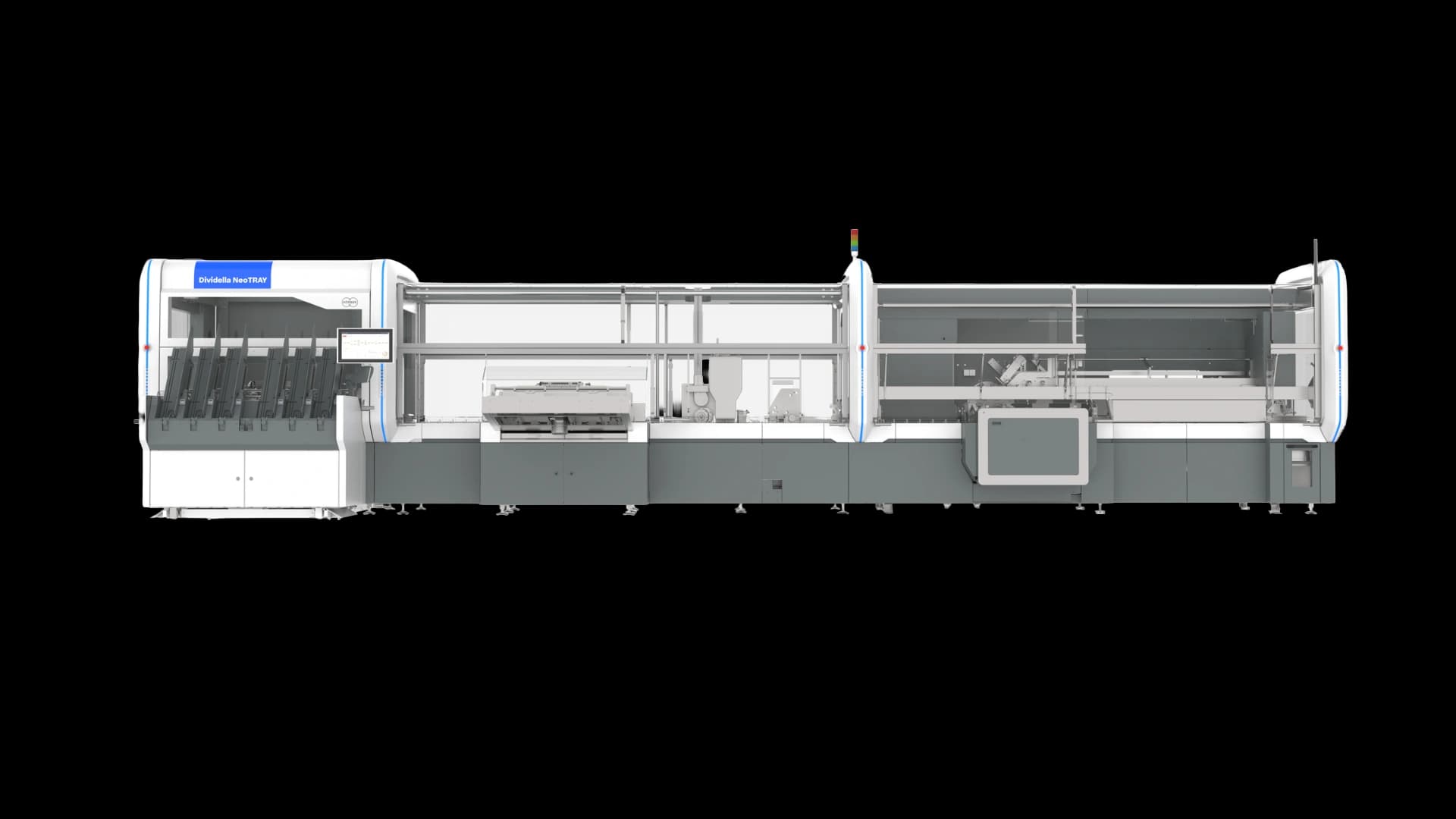

Photograph of Körber's machine Dividella NeoTRAY.

Accelerate your high-speed, large batch production

The Dividella NeoTRAY is a high-speed sideloading system that ensures efficient packaging for a wide range of parenteral products.

In numbers

Output

500 packs p/minute

Achieve outputs of up to 500 packs per minute, ideal for large-scale pharmaceutical production.

Format range

Up to 200mm

Supports carton sizes from 60 × 30 × 15 mm up to 200 × 150 × 110 mm for flexible packaging formats.

Changeover

10-45 min

Complete line clearance and format changes with two operators in as little as 30 minutes. 

Volume reduction

Up to 50%

Reduction in packaging volume, lowering storage, energy and shipping costs.

Modular configuration

M1-M9 modules

The machine features a modular design, allowing customers to select and combine the modules they need for maximum flexibility along the packaging line.

Benefits



Designed to handle a wide range of products

The system enables the creation of flexible combination packs, including ampoules, vials, syringes, injectors, blisters, and many other biologic and pharmaceutical products.

Improved patient safety

Simple, robust mechanics enable fast maintenance, predictable changeovers, and high OEE for pharmaceutical manufacturers.

Improved patient safety

Our solution features 100% post-loading verification and tamper-evident closures to guarantee product integrity and patient safety.

Late-stage customization

Our solution supports regional labeling, leaflet variations, and regulatory compliance without disrupting production.

Modular and scalable design

Expand or retrofit modules at any time to support new products, formats, or regulatory requirements without replacing the system.

Faster changeovers

Quickly switch between products with minimal downtime and disruptions.

Sustainable and durable solution

Uses recyclable cardboard packaging on a high-precision Swiss engineered line, ensuring durability and robust performance.

End-to-end integration capabilities

Support standalone machines, full line integration, or general contracting including upstream and downstream equipment.

Hohe OEE und einfache Wartung

Einfache, robuste Mechanik ermöglicht schnelle Wartung, planbare Formatwechsel und eine hohe OEE für pharmazeutische Hersteller.

Applications

Dividella NeoTRAY provides impact across different pharma packaging scenarios

Körber’s Dividella NeoTRAY offers three levels of implementation to fit your needs: as a standalone machine, as part of a fully integrated line using your own equipment, or as a complete solution where Körber manages everything, from design and sourcing to the integration of upstream and downstream systems.

This solution supports a wide range of parenteral products, including vials, syringes, pens/autoinjectors, ampoules, cartridges, and blisters, all on a single platform, eliminating the need to choose between technologies.

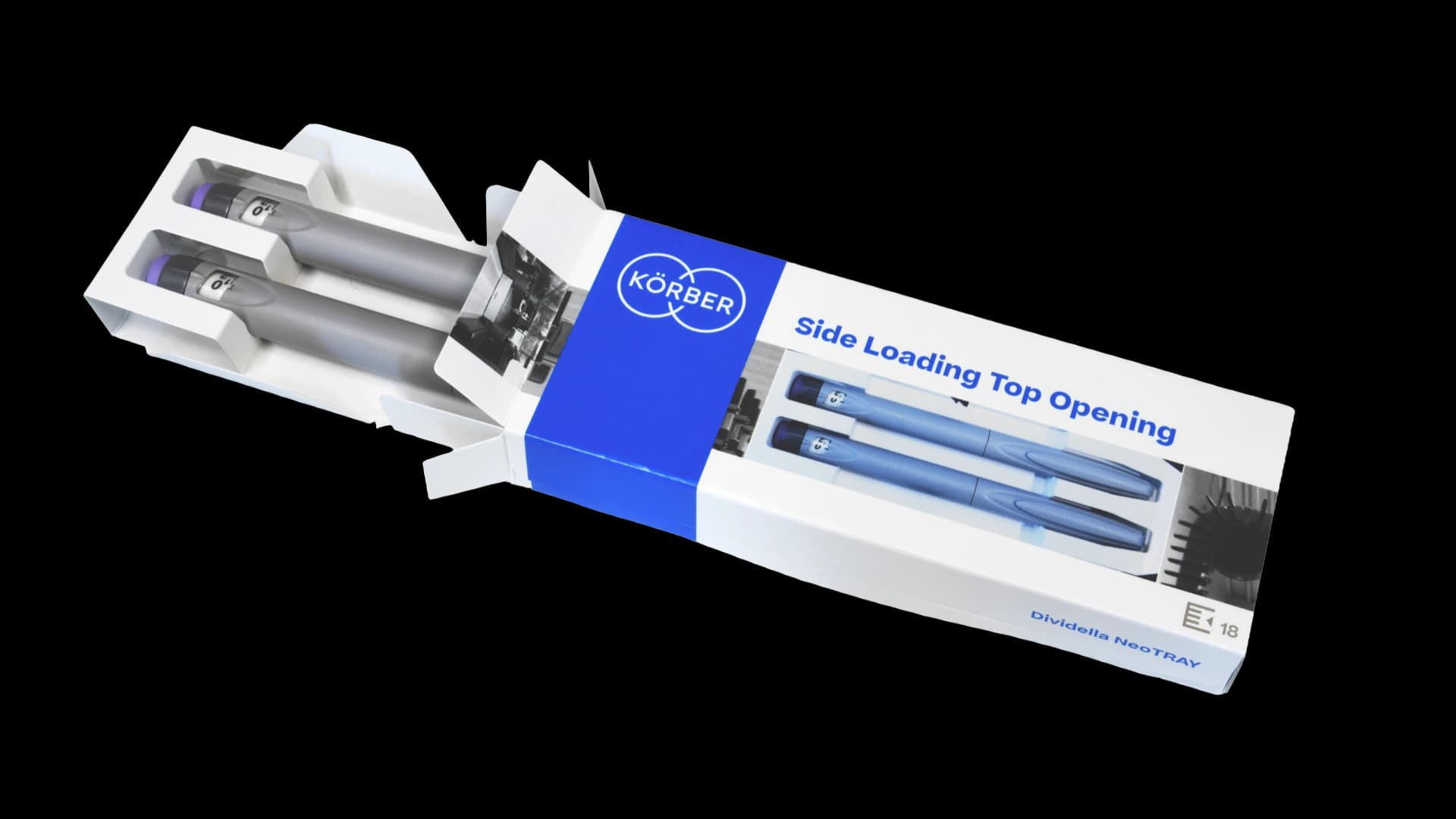

Package from Dividella NeoTRAY.

Designed for maximum flexibility, scalability, and high-performance operation

The Dividella NeoTRAY is ideal for very high-volume pharmaceutical production environments.

  • Large-scale commercial pharma manufacturing
  • High-volume parenteral production lines
  • CMO/CDMO multi-client packaging environments
  • Facilities with fluctuating or peak demand (e.g., vaccines during flu season)
  • Digitally integrated / smart factory environments

With ultra-high throughput of up to 500 packs per minute, the Dividella NeoTRAY combines the speed of sideloading with the flexibility of toploading, enabling efficient, continuous-motion packaging while maintaining high OEE, product quality, and patient safety

Technical features



Format dimensions (LxWxH)

Output (boxes/min)

Dividella NeoTRAY 500




Minimum

60 x 30 x 15 mm

Up to 500

Maximum

200 x 90 x 110 mm

Up to 500

Dividella NeoTRAY 300




Minimum

65 x 50 x 15 mm

Up to 300

Maximum

200 x 150 x 110 mm

Up to 300


Additional technical characteristics:

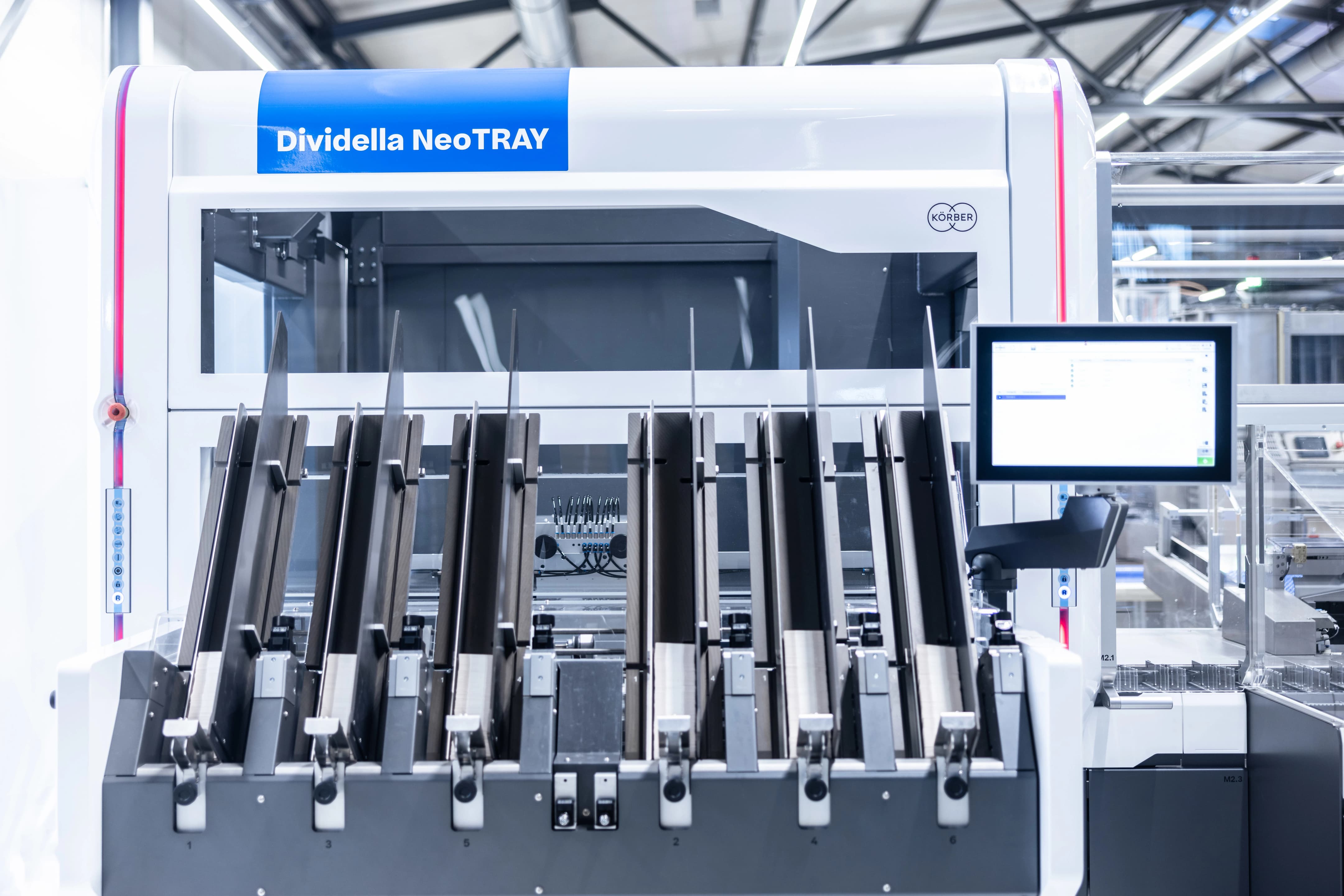

Photograph of Körber's machine Dividella NeoTRAY.

Format change and operation

  • Tool-less format changes
  • Changeover time: 10 to 45 minutes with two operators
  • Digital displays with position feedback
  • Logged setpoint changes for repeatability
  • Lightweight format parts (max. 17 kg)

Machine design and handling

  • Belt transfer system actively transports carton in a defined position throughout the machine
  • Access from both sides of the machine
  • No scratching of cartons and no hidden areas, supporting GMP compliance

100% verification, including:

  • Carton code and carton form
  • Partition code, form, and presence
  • Product presence and feature identification
  • Code and presence of additional components (e.g., booklets, labels)
  • Final carton shape control
  • Variable data inspection and serialization

Integration and connectivity

  • Compatible with third-party equipment such as printers, labelers, and camera systems, and serialization systems
  • Seamless integration with line management and MES systems

“No more deciding between top-loading flexibility or sideloading speed. With the Dividella NeoTRAY you get the best of both worlds.”

Markus Specker

Development Engineer, Körber Business Area Pharma Packaging, Grabs, Switzerland

The Körber advantage

+50

More than 50 customers worldwide rely on the platform across pharma applications.

Top 20

The top 20 big pharma companies and local players trust our solutions.

Since 1978

Since 1978, Körber has been innovating and reinventing pharmaceutical packaging solutions, supported by decades of expertise and a strong installed base worldwide.

Lifecycle support

We offer a 24/7 global service, validation support, retrofits, and proactive obsolescence management to maintain long-term operability.
