Dividella NeoTOP x

A modular top-loading cartoner solution for small to medium parenteral batches, that enables flexible mono-material packaging with fast changeovers and up to 45 packs per minute.

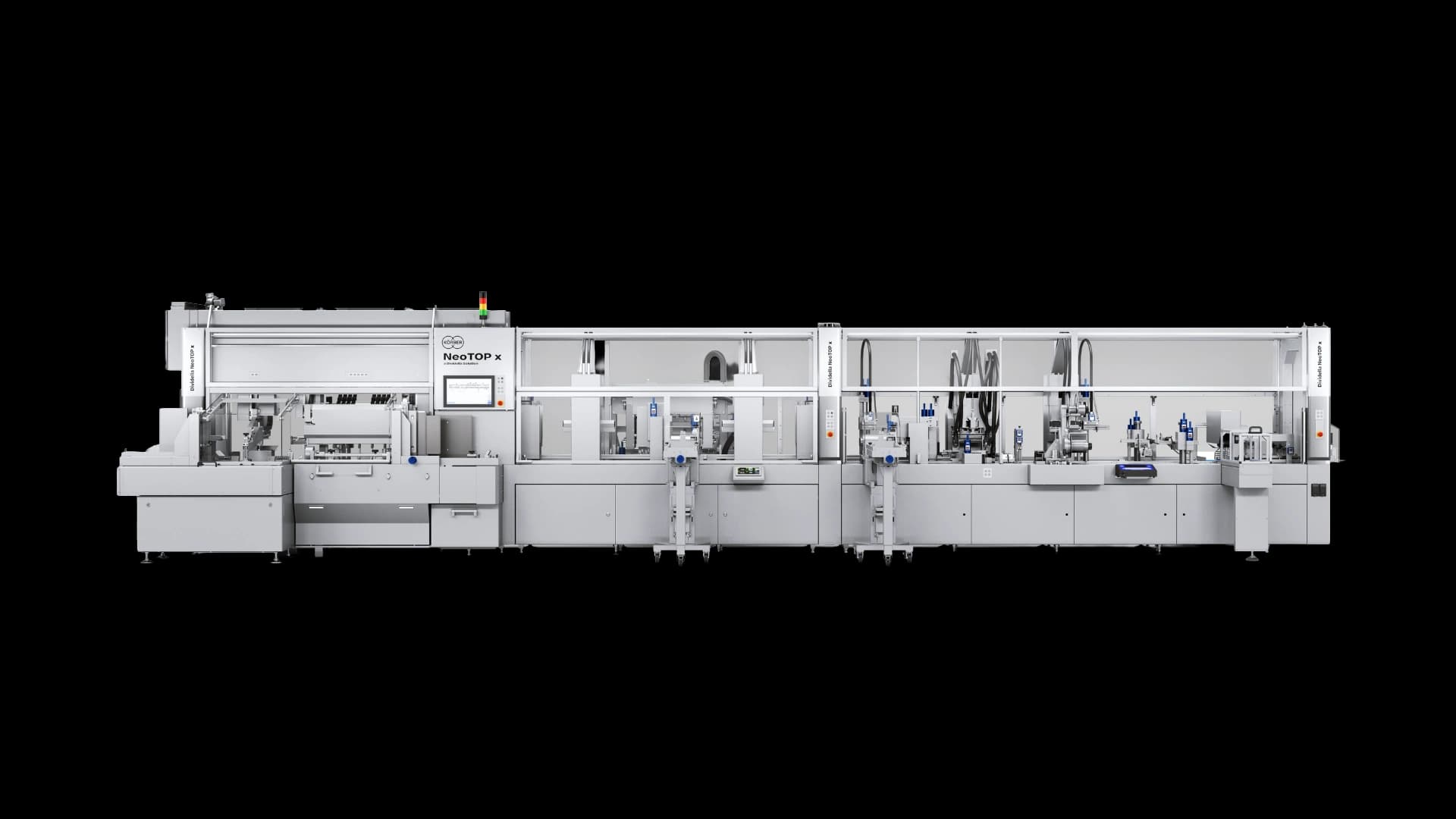

Photograph of Körber's machine Dividella NeoTOPx.

Industry leading range

Our largest toploading format range, from a single product to your most complex pack arrangements and everything in between on one line. Format change and line clearence typically within 45 minutes.

In numbers

Output

45 packs p/minute

Achieve outputs of up to 45 packs per minute for small to medium batch production.

Changeover

10-45 min

Complete line clearance and format changes with two operators in as little as 10 minutes.

Volume reduction

Up to 50%

Reduction in packaging volume, lowering storage, energy and shipping costs.

Modular configuration

M1-M9 modules

The machine features a modular design, allowing customers to select and combine the modules they need for maximum flexibility along the packaging lines.

Gentle handling and packaging of pharma containers

Körber offers secondary packaging solutions for all primary pharma containers, keeping compliance and safety during handling and transportation processes.

Picture of an ampoule

Ampoules

Gentle and high-speed handling for delicate glass containers to prevent breakage and preserve product integrity.

Picture of a pharma injection pen.

Pens

Careful loading and packaging for complex multi-dose injection pens, safeguarding mechanical dosing systems.

Picture of a syringe

Syringes

Highly precise orientation and secure handling for pre-filled syringes.

Picture of a safety syringe

Safety syringes

Controlled feeding engineered to protect sensitive built-in safety shields and needle mechanisms.

Picture of a vial

Vials

Stable, flexible packaging solutions designed to safeguard cap, label and glass stability.

Picture of an autoinjector

Autoinjectors

Gentle handling of autoinjectors, protecting delicate spring and casing out components for self-dose systems.

Benefits



Designed to handle a wide range of products

The system enables the creation of flexible combination packs, including ampoules, vials, syringes, injectors, blisters, and many other biologic and pharmaceutical products.

Reduced costs

With the 50% volume reduction in packaging, you also reduce logistics, storage, and cost of ownership.

Improved patient safety

Our solution features 100% post-loading verification and tamper-evident closures to guarantee product integrity and patient safety.

Late-stage customization

Supports regional labeling, leaflet variations, and regulatory compliance without disrupting production.

Modular and scalable design

Expand or retrofit modules at any time to support new products, formats, or regulatory requirements without replacing the system.

Faster changeovers

Quickly switch between products with minimal downtime and disruptions.

Sustainable and durable solution

Uses recyclable cardboard packaging on a high-precision Swiss engineered line, ensuring durability and robust performance.

End-to-end integration capabilities

Support standalone machines, full line integration, or general contracting including upstream and downstream equipment.

Gentle product handling

Carton and products are handled very gentle with vacuum and features like overload detection, improving product safety.


Applications

Dividella NeoTOP x provides impact across different pharma packaging scenarios

Körber’s Dividella NeoTOP x offers three levels of implementation to meet your needs: as a standalone machine, as part of a fully integrated line using your own equipment, or as a complete solution where Körber manages everything.

When you chose our end-to-end approach, we support you from design and sourcing to the integration of upstream and downstream systems.

Designed for flexibility and speed across pharmaceutical applications

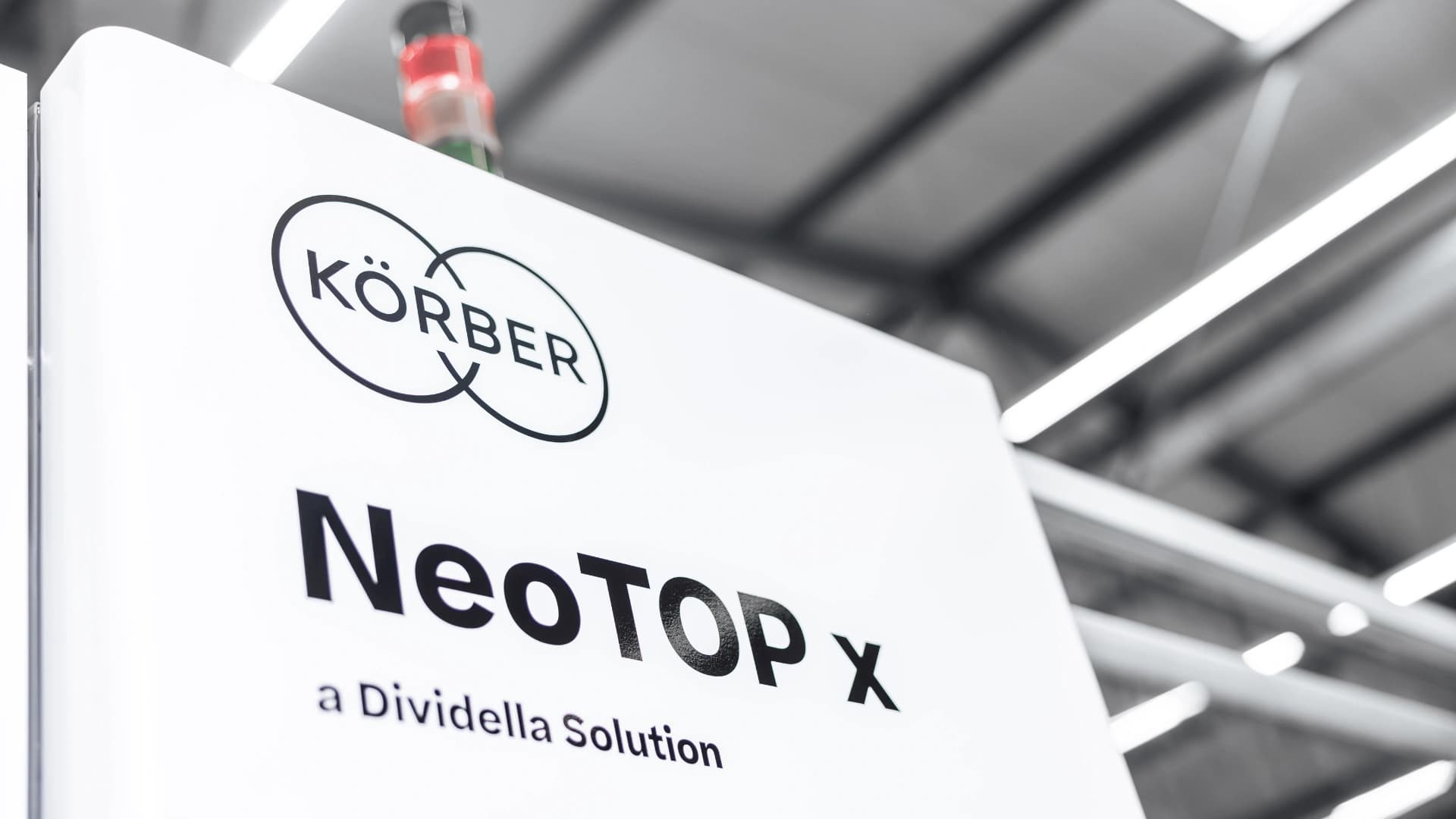

  • Picture of the NeoTOP x machine sign.

    Clinical trials

    The NeoTOP x supports rapidly changing formats and low production volumes required for clinical trial supply packaging, since it enables the use of the same packaging solution from early trials through to commercial production. This supports market research, clinical studies, and ramp-ups where small-batch packaging is required.

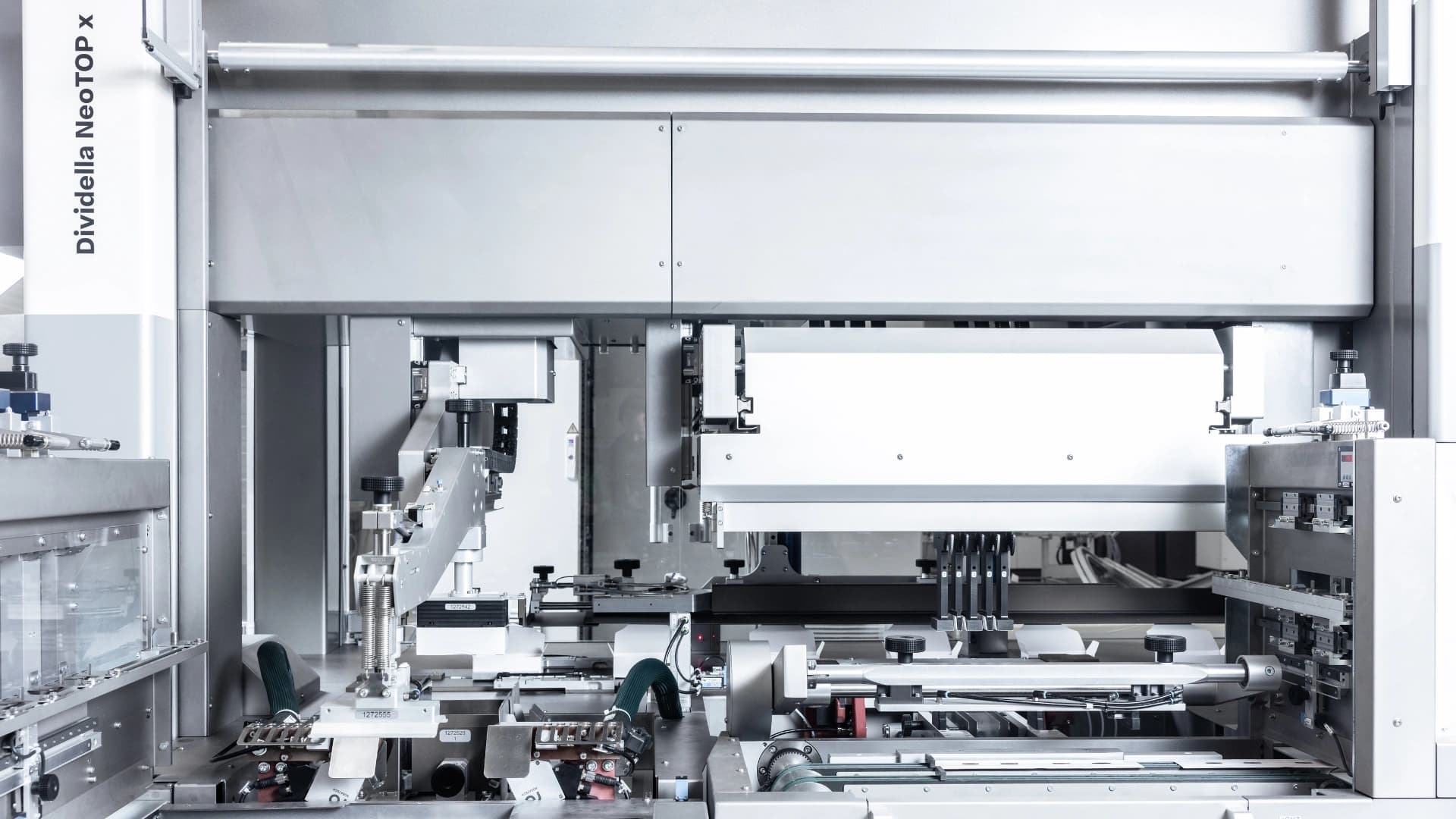

  • Picture of the NeoTOP x machine.

    Biotech and biosimilar launches

    Biotech launches require flexible production to handle variable batch sizes. The system supports these needs and is also suitable for biosimilars, since it allows for late-stage customization for regional markets, including labeling and leaflet variations.

Technical features



Format dimensions (LxWxH)

Number of partitions (max.)

Output (boxes/min)

Dividella NeoTOP x





Minimum

60 x 45 x 17 mm

6

Up to 45

Maximum

up to 260 x 200 x 120 mm

6

Up to 45


Additional technical characteristics:

Picture of the Dividella NeoTOP x in a exhibition.

Format change and operation

  • Tool-less format changes
  • Changeover time: 10 to 45 minutes with two operators
  • Digital displays with position feedback
  • Logged setpoint changes for repeatability
  • Lightweight format parts (max. 17 kg)

Machine design and handling

  • Vacuum transfer system keeps cartons in a defined position throughout the process
  • Access from both sides of the machine
  • No scratching of cartons and no hidden areas, supporting GMP compliance

Verification and quality control

  • 100% verification including:
  • Carton code and carton form
  • Partition code, form, and presence
  • Product presence and feature identification
  • Code and presence of additional components (e.g., booklets, labels)
  • Final carton shape control
  • Variable data inspection and serialization

Integration and connectivity

  • Compatible with third-party equipment such as printers, labelers, and camera systems, and serialization systems
  • Line optimizer ready

"The feedback that I received from my team, was throughout positive. This applies both to the Dividella NeoTOP x capabilities and to the good cooperation. This machine covers a strategically important part of our production expansion and we are happy to have a reliable partner with Körber."

Hans-Jörg Schiesser

Director Engineering & Maintenance Cilag AG Schaffhausen / J&J Pharmaceutical

The Körber advantage

+50 

More than 50 customers worldwide rely on the platform across pharma applications.

Top 20

The top-20 big pharma companies and local players trust our solutions.

Since 1978

Körber is a pioneer in top-load cartoning for the pharmaceutical industry and supports a large global installed base with decades of expertise.

Lifecycle support

We provide 24/7 global service, support, retrofits, and obsolescence management to keep operations running long term.
